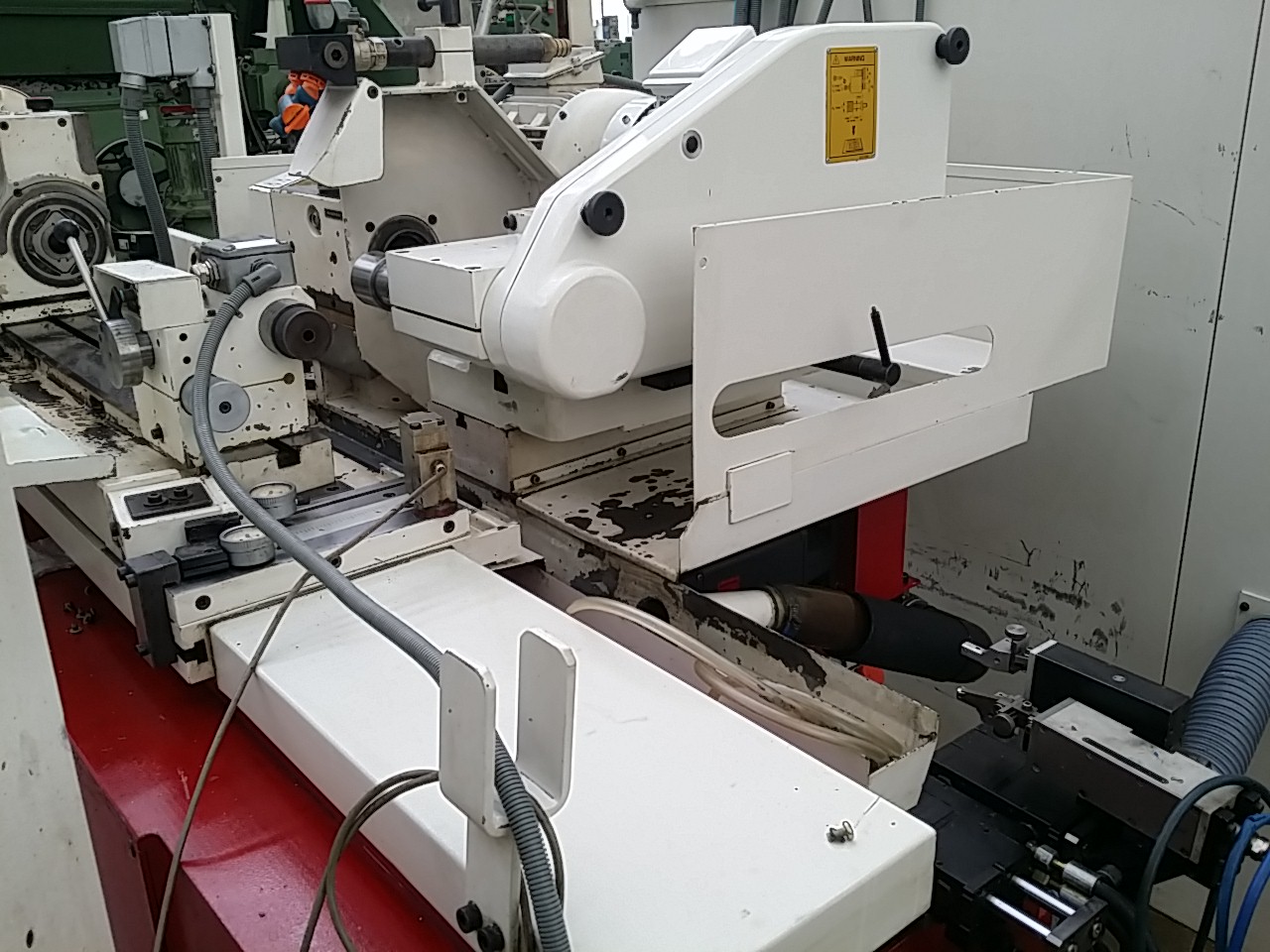

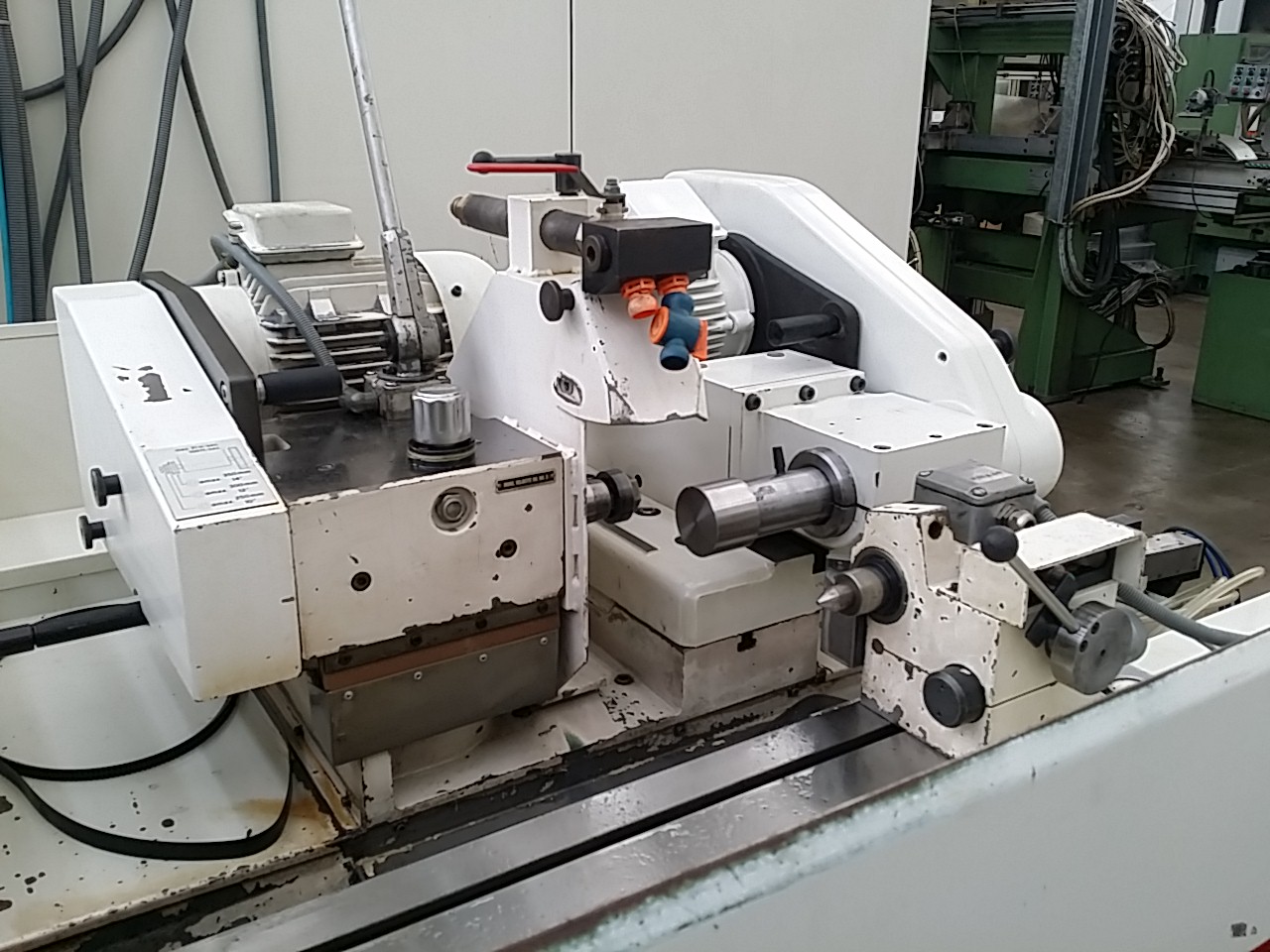

1990 Studer S20 CNC

Internal-External CNC grinding machine STUDER S20-4 CNC control: Siemens 3G Distance between centers, mm 650 Center height, mm 100 Grinding length, mm 650 Max. table travel, mm 650 Min. automatic travel, mm 1 Wheel head slide motor power, kW 1,1 Grinding wheel size, mm 350 x 30 x 127/13,8 x 1,18 x 5 Wheel sets max. width, mm 50 Wheel head motor power, kW 3 Spindle speeds, rpm 1600/1975/2200 Swivel range to right, degrees 15/30 Spindle speeds of universal workhead, rpm 30...1200 Fitting taper, Morse 4 Machine can be inspected in our warehouse in Gussago BS Italy Mimu machine tools
